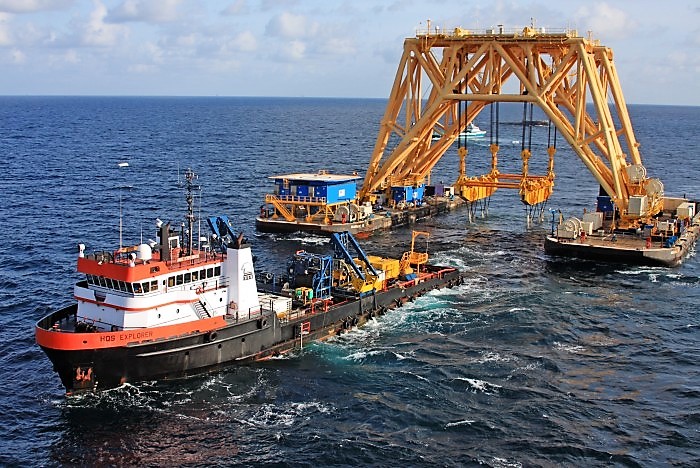

Transport boat

Custom

Item # 90962

EMD powered Ocean Certified boat: Length: 220 ft 0 in (67.1 m) Beam: 46 ft 0 in (14.0 m) Draft Max:13 ft 8 in (4.17 m) Gross: 1,254 GT Net : 376 NT Draft Min: 9 ft 0 in (2.74 m) Flag: U.S. Certifications: Oceans, SIP, USCG Subchapter I, USCG Subchapter L Classifications: American Bureau of Shipping, Loadline PERFORMANCE Max Speed: 12.0 kts 215 gal/hr (814 l/hr) Cruise Speed: 10.0 kts 120 gal/hr (454 l/hr) PROPULSION, MACHINERY AND STEERING Main Engines: 2 x EMD 16-645 E2 Total Horsepower: 3,900 hp Propellers: FPP, 4-Blade Propeller Diameter: 96in (2,438mm) Primary Generators:2 x Cummins NT855 Total Rating: 250 kW Bow Thruster: 1 x SMI FPP Tunnel Total Horsepower: 755 hp Stern Thruster: 1 x SMI FPP Tunnel Total Horsepower: 525 hp Rudder: Independent Steering, Spade Type Power Generation: 480V/60 Hz/3-Phase CAPACITIES AND DELIVERY RATES Deadweight: 1,625 LT (1,651 MT) Deck Area: 138ft x 38ft (5,244ft²) 42.1m x 11.6m (487.2m²) Deck Cargo: 1,030 LT (1,046 MT) Deck Load Rating: 540 lbs/ft² (3 MT/m²) Dry Bulk: 8,135 ft³ (230 m³) System Pressure: 80 psi (5.5 bar) Brine: 3,050 bbl (485 m³) Discharge Rate: 1,200 GPM (273 m³/hr) Liquid Mud: 3,050 bbl (485 m³) Discharge Rate: 1,200 GPM (273 m³/hr) Potable Water: 27,850 gal (105 m³) Rig Fuel: 88,070 gal (333 m³) Discharge Rate: 380 GPM (86 m³/hr) Rig Water: 95,930 gal (363 m³) Discharge Rate: 400 GPM (91 m³/hr) Cooler Area: 450 ft³ (13 m³) Freezer Area: 375 ft³ (11 m³) Total Flow Rate: 2,400 gal/min (546 m³/hr) Off Ship Firefighting Monitors: 1 ELECTRONICS Auto Pilot, C-Nav, CCTV Cameras, Depth Sounder, DGPS, EPIRB, Fanbeam, GMDSS "A3", Gyro Compass, Joystick Control, Loudhailer, Mag Compass, MAMS/VMS, Navtex, Radar (S-band), SARTs, VHF Radio, VHF Radio (Handheld), Windbird, X-band Radar, Beier IVCS 2002 ACCOMMODATIONS 10 air conditioned/heated staterooms certified for 22 person berthing. While we attempt to display current and accurate data, this listing may not reflect the most recent transactions or may contain occasional data entry errors. Selling agent makes no warranties, express or implied, regarding the content or availability of the products described herein. All inventory listed is subject to availability and prior sale. Prices are quoted for the USA only and may not include transportation, taxes, or other applicable charges. Photographs may be representative only and may vary somewhat from the actual items offered for sale. We will not be responsible for inaccurate data obtained from our site. Information on this web site could include technical inaccuracies or typographical errors. Buyer assumes responsibility to verify all speeds, capacities, consumption's and other measurements contained herein and otherwise provided and agrees to instruct his agent/s to confirm such details prior to purchase. Vessels are, prior to sale, subject to price and inventory changes and withdrawal from market without notice. Changes may be periodically made to the information or the products herein.

Model: Transport boat
Manufacturer: Custom
HP: 3900
KW: 0
Ratio: 0:1
Fob: US Gulf
Vessel Information
Vessel Length: 220
Vessel Beam: 46
Vessel Draft: 13'8
